A mechanical commutator gearbox redirects rotary power between shafts, commonly through a right angle. In this context, the term describes a mechanical transmission rather than the electrical commutator inside a brushed motor. More conventional English names include right-angle gearbox, bevel gearbox, and angular transmission.
Selecting a mechanical commutator requires an understanding of both shaft position and rotation direction. Two housings can look similar while providing different input locations, output arrangements, or rotational relationships. A drawing that shows only external dimensions may therefore leave important installation questions unanswered.
The practical task is to identify every shaft, define the observation direction, and verify how the outputs respond to the specified input. A mechanical commutator should be documented as part of the complete machine, including couplings, downstream transmissions, and control commands.

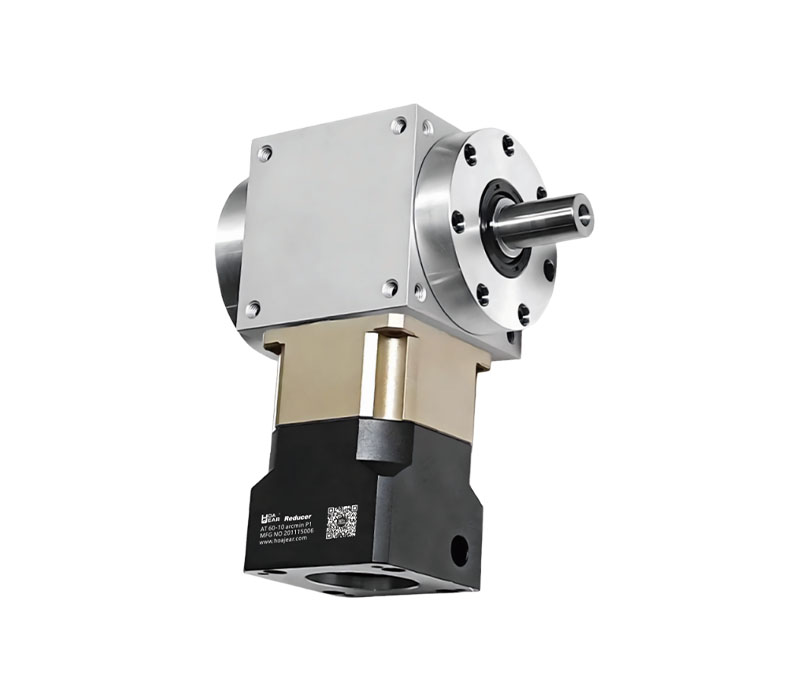

A bevel-based mechanical commutator transfers torque through gears mounted on intersecting axes. The input gear drives the mating gear, changing the orientation of the power path. Other right-angle gear arrangements can have offset axes, so external appearance alone does not identify the internal mechanism.
A mechanical commutator may redirect power without changing nominal speed, or combine the direction change with reduction. A 90-degree shaft angle describes geometry; it does not specify the speed ratio or tell the installer whether an output appears clockwise.
Before interpreting a mechanical commutator diagram, confirm the gear arrangement, designated input, ratio definition, and permitted operating directions. These details establish the framework for checking the actual shaft relationships.
Assign a unique identifier to each shaft or flange. For example, a mechanical commutator drawing may label the input as S1 and two outputs as S2 and S3. Those labels are project references rather than universal catalog conventions.
Record shaft diameter, usable engagement length, keyway or spline details, and axial retention. A mechanical commutator can have matching shaft diameters at different locations without those shafts being interchangeable as inputs.
Identify the housing reference face and mounting orientation as well. A mechanical commutator rotated during installation may occupy the correct space while placing its output on the wrong side of the machine. Consistent identification prevents confusion between the original drawing and the installed assembly.

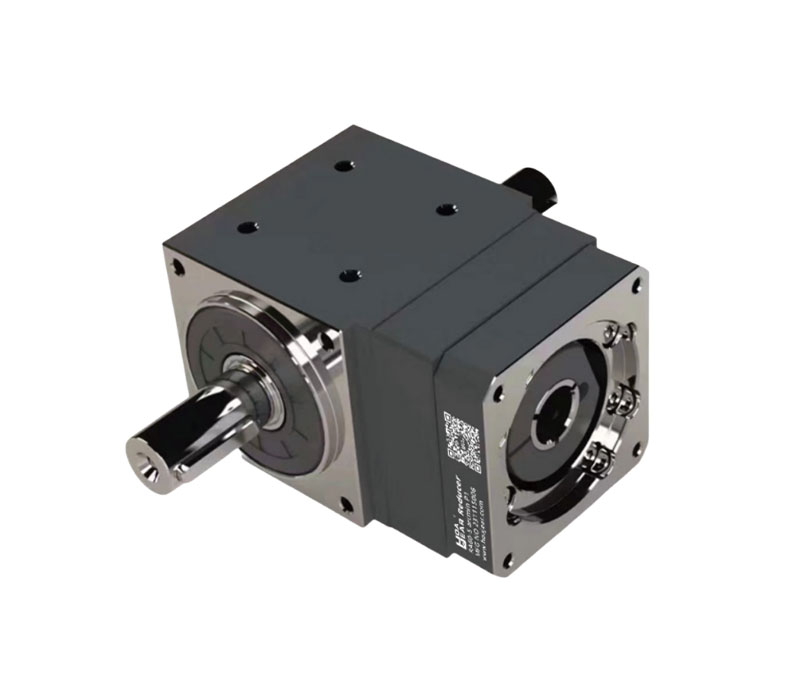

An L-type mechanical commutator commonly has one input and one output arranged at right angles. It provides a straightforward way to connect a motor to a driven mechanism when their axes cannot share a straight line.
The output may be located on different housing faces depending on the selected configuration. A mechanical commutator ordered with the incorrect shaft position can interfere with the frame, reverse the intended machine-side orientation, or require additional transmission components.
Confirm the arrangement using a dimensional drawing with labeled shafts. For a mechanical commutator installed beneath a conveyor, check not only the output location but also motor clearance, coupling access, mounting bolts, lubrication provisions, and the space needed to remove components during maintenance.
A T-type mechanical commutator commonly has one shaft perpendicular to two opposed shaft extensions. However, the internal connection between those extensions varies. They may belong to one continuous shaft or form separate outputs driven through different gear arrangements.
Consequently, a mechanical commutator with three visible shafts does not automatically provide independent speed control, equal torque sharing, or counter-rotation. Each function must be confirmed from the internal arrangement and rotation diagram.
Use a T-type mechanical commutator when the machine requires power distribution to two branches, provided the ratings support the intended loads. Identify each branch separately and check total input power as well as the individual torque and bearing limits.
Clockwise and counterclockwise describe what an observer sees from a specific direction. For a mechanical commutator, a useful convention is to view each exposed shaft end while looking inward toward the housing. The drawing should state this explicitly.
Plan views, side views, and three-dimensional illustrations can use different arrow conventions. A mechanical commutator diagram may show the housing from above while its rotation arrows represent views from individual shaft ends. Read the drawing notes before interpreting those arrows.
Avoid instructions such as “both shafts turn clockwise” without observation references. For a mechanical commutator with perpendicular axes, the input and output have different viewing directions, making an unlabeled comparison especially easy to misunderstand.
Consider a single continuous shaft extending through opposite sides of a mechanical commutator. Its two ends belong to the same rotating member. Viewed from one exposed end, rotation appears clockwise; viewed from the opposite exposed end, it appears counterclockwise.
That apparent difference does not establish true counter-rotation. It results from observing the same angular motion from opposite directions. A mechanical commutator specification must distinguish opposite-end views from independently rotating shafts.
If the application requires two tools to rotate in opposite physical senses about a common axis, request a configuration designed for that function. Do not assume that two opposite arrows on a mechanical commutator drawing prove the presence of separate counter-rotating outputs.
For parallel-axis external gears, each external mesh reverses rotational sense when both axes use the same observation reference. Applying that simple rule to perpendicular shafts without defining coordinates can produce misleading conclusions.
A mechanical commutator with bevel gears requires its actual geometry to interpret the rotational relationship. Additional gear stages can change that relationship, while alternative shaft arrangements may produce different machine-side results.
Spiral tooth handedness also does not independently establish the final output direction. Select a mechanical commutator using its documented shaft and rotation diagram. When the diagram is unclear, request a marked configuration drawing instead of inferring direction from the housing shape or tooth description.
Define reduction ratio as input speed divided by output speed. A mechanical commutator with a 2:1 reduction produces a nominal 500 rpm output from a 1,000 rpm input. A 1:1 unit mainly redirects the power path.
For steady operation, approximate output torque equals input torque multiplied by ratio and efficiency. With 10 Nm input torque and an assumed 95% efficiency, the 2:1 example produces approximately 19 Nm. These are illustrative calculations rather than mechanical commutator ratings.
Speed magnitude and rotation direction should be recorded separately. A mechanical commutator specification can state an unsigned ratio alongside clearly referenced arrows, avoiding ambiguity about whether a negative sign describes physical rotation or a software coordinate convention.
For a fixed gear arrangement operating without one-way elements, reversing the input reverses the connected outputs. The mechanical commutator retains its established kinematic relationship, but backlash and elastic deformation can affect the transition.
Verify that the mechanical commutator supports the intended reversing duty. Frequent changes of direction create acceleration loads and may change gear thrust directions. Permitted speed, peak torque, bearing capacity, and lubrication must suit the operating cycle.
Reversing motor rotation is different from driving the gearbox through a designated output. A mechanical commutator may have restrictions on reverse power flow or speed increase. Obtain approval for that operating mode rather than assuming all shafts can exchange input and output roles.
A mechanical commutator can distribute rotation without dividing torque equally. Each connected mechanism draws torque according to its resistance and motion requirements. A lightly loaded branch does not necessarily receive half the available torque.
During steady operation, total output power cannot exceed input power after losses. For a multiple-output mechanical commutator, check branch speeds and torques together, along with the rating of shared internal components.
Mechanical linkage also does not guarantee perfect positioning agreement under load. Backlash, shaft twist, and coupling compliance can produce differences between branches. A mechanical commutator used for coordinated movement should be assessed at the driven mechanisms, especially if one branch experiences changing process forces.
Prepare a shaft schedule before releasing the mechanical commutator for purchase. The schedule should connect the gearbox drawing to the machine coordinate system and motor command convention.
| Drawing item | Information to record |
|---|---|
| Housing reference | Mounting face, orientation, and machine-side reference |
| Shaft identifiers | Designated input and individually labeled outputs |
| Viewing direction | Observer looking from each shaft end toward the housing |
| Input condition | Specified direction and nominal input speed |
| Output response | Direction and speed for every output under that input condition |
| Internal relationship | Continuous through-shaft, separate geared outputs, or another arrangement |
| Operating limits | Torque, speed, external loads, duty cycle, and mounting restrictions |
Add configuration-specific arrows to the mechanical commutator drawing. Verify the final drawing against the exact ordered arrangement rather than copying arrows from a visually similar product.
Install the mechanical commutator on a rigid mounting surface and align the connected equipment within specified tolerances. Do not force shafts into alignment by tightening housing bolts or drawing together incorrectly positioned couplings.
Check mounting orientation against lubricant instructions. Rotating a mechanical commutator housing can alter lubricant distribution, vent position, and access to level indicators where fitted. A geometrically convenient orientation is not automatically an approved operating position.
Confirm keys, clamping elements, and axial retention before startup. A mechanical commutator shaft carrying a pulley or sprocket also needs an external-load check that includes force direction and overhang. Correct rotation direction alone does not establish a mechanically acceptable installation.
Before testing, isolate energy for inspection and secure stored or suspended loads. Establish a test procedure that prevents unexpected movement from damaging equipment. If the mechanical commutator is already connected to the process, verify that a wrong-direction movement will not create a hazardous condition.
When permitted, use a brief, controlled low-speed movement with guards and protective measures in place. Observe marked shaft references from the defined positions. Record the mechanical commutator input direction and every output response.
Compare results with the approved drawing before proceeding to production speeds. Stop the mechanical commutator if the response differs, then investigate configuration, observation convention, motor command, and downstream transmission arrangement before making changes.
Start with the viewing convention. Many apparent mechanical commutator direction errors arise because one person observes the shaft from its free end while another looks along the same axis from behind the motor.
Next, inspect the exact shaft arrangement and downstream transmission. Belts, chains, external gears, and intermediate shafts can change the relationship between gearbox output and final tool motion. The motor drive's positive command may also differ from the machine's defined positive direction.
If the mechanical commutator configuration is incorrect, changing a software sign may not solve every branch simultaneously. Confirm all driven functions after correction and update drawings, control documentation, and maintenance instructions to match the final arrangement.
Rotation direction and assembly phase are different specifications. A mechanical commutator may turn both mechanisms correctly while their attached fixtures remain incorrectly timed. Keys, splines, coupling positions, and the initial assembly angle establish the working relationship between those fixtures.
Record any required home position, alignment marks, and allowable phase error. For a mechanical commutator linking two feeding mechanisms, verify clearance throughout a complete cycle after assembly. Electronic homing can establish a reference, but it does not automatically correct an incorrectly assembled mechanical relationship.
No. Right-angle arrangements are common, but shaft angle and internal geometry depend on the product. Confirm the configuration drawing rather than treating the term as a universal specification.
No. Opposite ends of one continuous shaft appear to rotate differently when each is viewed inward. Genuine counter-rotation requires the appropriate internal arrangement and a shared reference convention.
Possibly, if the specific unit permits it. Check lubrication, shaft guarding, sealing, permissible loads, and any restrictions associated with the unused extension.
Provide a labeled shaft drawing, viewing directions, required speed ratio, load data, mounting position, and duty cycle. State whether branches need coordinated rotation, true counter-rotation, or simply two available shaft connections.
